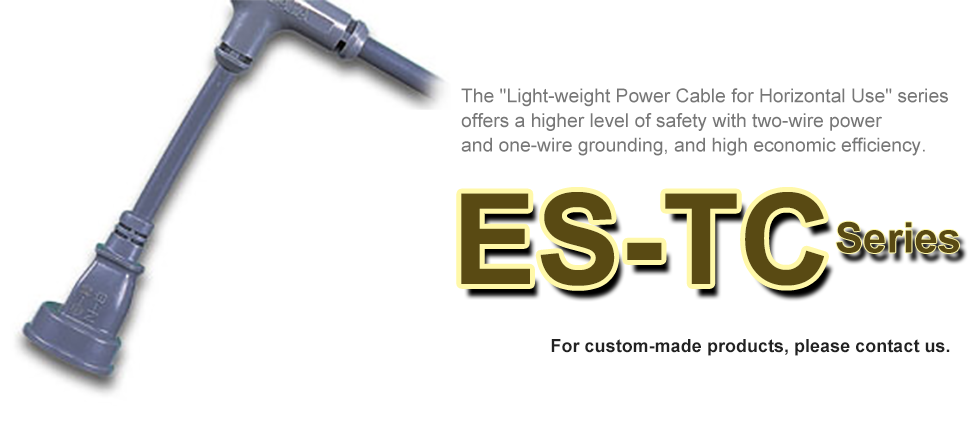

ES-TCシリーズ

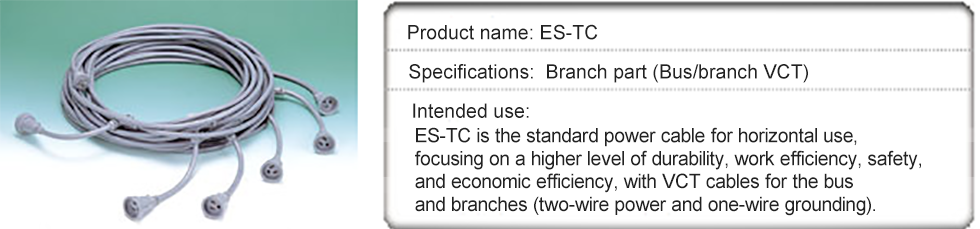

Product name: ES-TC Specifications (Only for power)

Product number	Product name	Bus		Branch				Waterproof connector and plug at both ends	Product drawing	Standard price (tax excluded)
		Overall length	Wire	Interval	Wire	Connector	Number of pieces

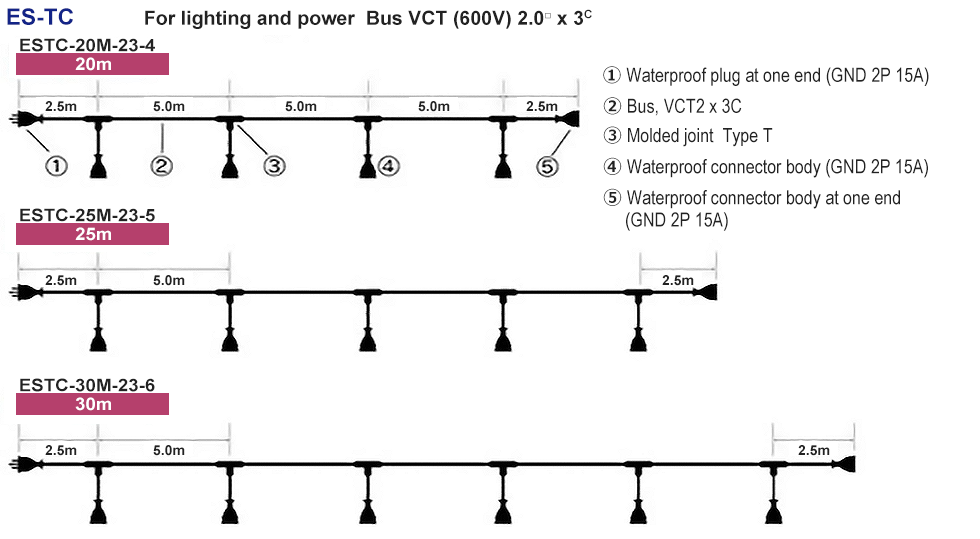

1401	ESTC-20M-23-4	20m	VCT 2□×3C	5m	VCT 2□×3C	GND 2P 15A	4	GND 2P 15A	PDF	¥13,500
1402	ESTC-25M-23-5	25m					5		PDF	¥16,600
1403	ESTC-30M-23-6	30m					6		PDF	¥19,600
1411	ESTC-20M-353-4	20m	VCT 3.5□×3C		VCT 2□×3C	GND 2P 15A	4	GND 2P 15A	PDF	¥17,200
1412	ESTC-25M-353-5	25m					5		PDF	¥20,900
1413	ESTC-30M-353-6	30m					6		PDF	¥24,700
1421	*ESTC-20M-22-4	20m	VCT 2.0□×2C		VCT 2□×2C	2P15A	4	2P15A	PDF	¥13,500
1422	*ESTC-25M-22-5	25m					5		PDF	¥16,300
1423	*ESTC-30M-22-6	30m					6		PDF	¥19,000

*Build-to-order
