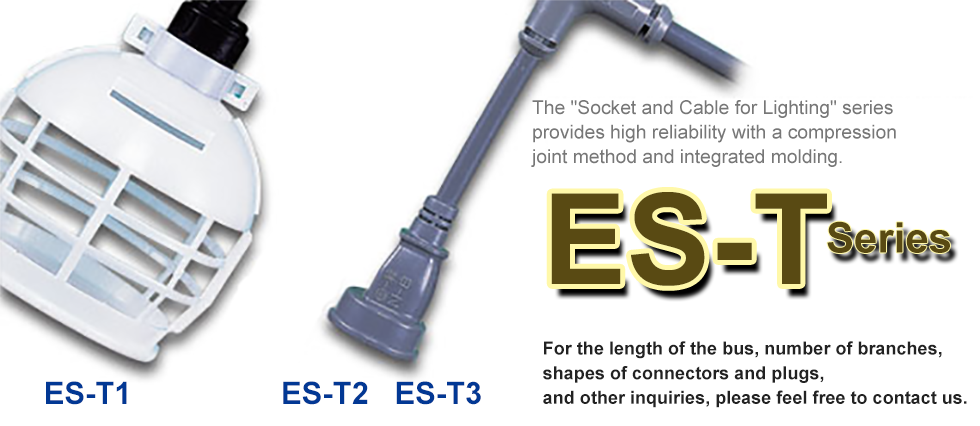

ES-T Series

ES-T1

Product name:ES-T1
Product number Product name Bus Branch Waterproof
connector
and plug
at both ends
Product drawing

Standard price

(tax excluded)

Wire Overall length With
waterproof
socket guards
Interval (m) Waterproof
connector
GND
2P 15A
1311  EST1-20M-6L  VCT2□×2C  20m 6 3

2P15A

PDF ¥13,800
1312  EST1-20M-10L 20m 10 2 PDF ¥18,600
1313  EST1-30M-10L 30m 10 3 PDF ¥21,300
1314  EST1-50M-12L 50m 12 4 PDF ¥29,300
1315  EST1-50M-18L  50m 18 2.75 PDF ¥34,100

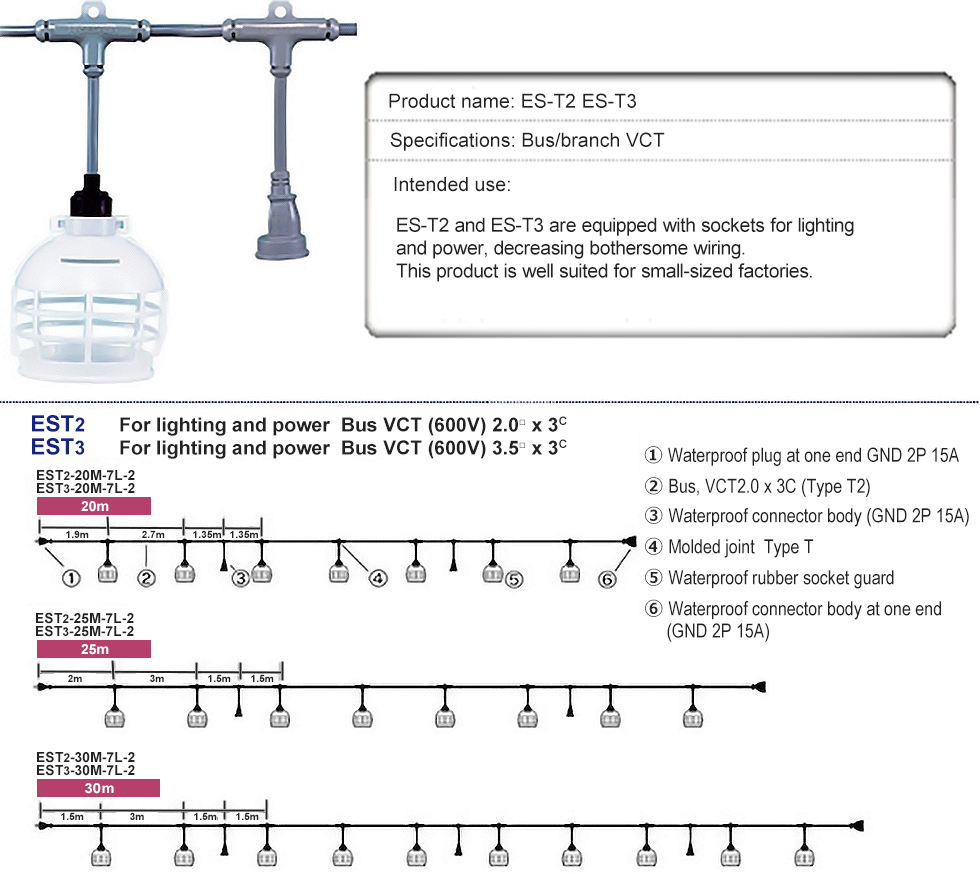

ES-T2 ES-T3

Product name: ES-T2
Product number Product name Bus Branch Waterproof
connector
and plug
at both ends
Product drawing Standard price

(tax excluded)

Wire Overall length With waterproof
socket guards
Interval (m) Waterproof
connector
GND
2P 15A
1321  EST2-20M-7L-2  VCT2□×3C 20m 7 2.7 2 GND 2P 15A
PDF ¥20,800
1322  EST2-25M-8L-2 25m 8 3 2 PDF ¥24,000
1323  EST2-30M-10L-3 30m 10 3 3 PDF ¥29,900



Product name: ES-T3
Product number Product name Bus Branch Waterproof
connector
and plug
at both ends
Product drawing Standard price

(tax excluded)

Wire Overall length With waterproof
socket guards
Interval (m) Waterproof
connector
GND
2P 15A
1331  EST3-20M-7L-2 VCT3.5□×3C 20m 7 2.7 2 GND 2P 15A
PDF ¥27,200
1332  EST3-25M-8L-2 25m 8 3 2 PDF ¥31,400
1333  EST3-30M-10L-3 30m 10 3 3 PDF ¥38,700
